| Place of Origin | China |
| 브랜드 이름 | PackMate |
| 인증 | CE |
| Model Number | multi lane stick sachet snus powder packaging machine |
| Packaging Material | CANS, Bottles, Bags, Pouch |
| Automatic Grade | Automatic |
| Product Name | Snus packing machine |

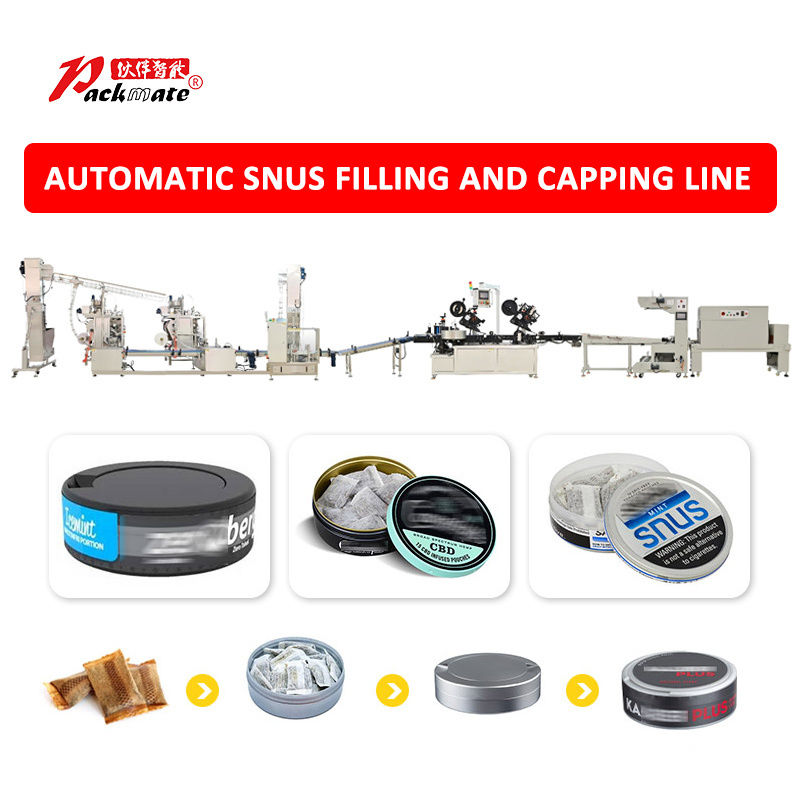

The multi-line snus packing machine is designed for packaging fine granular materials including snus, tea, freeze-dried coffee, grains, and herbs.
This fully automated system handles all packaging processes without manual intervention, including:
The machine features an intelligent PLC control system with touchscreen operation for easy parameter setting and performance control.
| Feature | Dry Granule 4-Lane Back Seal | Wet Granule 4-Lane Back Seal |
|---|---|---|
| Applicable Material | Dry Granule | Wet Granule |
| Measuring Method | Horizontal Screw Metering | Rotary Metering |
| Moisture Level | 3-10% | 25%-40% |
| Packaging Weight | 0.4-0.6g | 0.4-0.6g |
| Speed | 30-45 cuts/min | 30-45 cuts/min |
| Bag Style | Back Seal Bag, inner and outer sealing | |
| Web Width | 120mm, 128mm, 136mm (choose one) | |
| Bag Size | Width 13mm, 14mm, 15mm (choose one) × Length 20-50mm | |
| Vertical Seal | 4mm, no pattern | |
| Horizontal Seal | 4mm, no pattern | |
| Bag Pulling Method | Heat sealing and pulling the bag, servo motor bending drive, horizontal sealing and clamping bag up and down | |
| Cutting Style | Flat Cut (Die cut device) | |
| Air Pressure and Consumption | 0.6-0.8Mpa, 2.5-3m³/min | |
| Power | 220V/50Hz, 3.5Kw | |
